MapsGL Android - Layer Masks

Layer masks allow you to control the visibility of different parts of a layer by using another layer as a mask. This is useful for creating complex visual effects, such as revealing or hiding parts of a layer based on the shape or content of another layer. By using administrative layers as masks, you can create more dynamic and context-aware maps that highlight specific regions or features.

When configuring a mask for a MapsGL layer, the layer being used as the mask must have already been added to the map. You can then specify the mask layer in the layer’s configuration options.

Configuration

The following options are available when configuring a mask for a layer (Kotlin LayerMaskSpec, set on layer.layerMask or synthesized from maskLayerIds):


// Equivalent to JS LayerMaskSpecification:
//
//   layerIds  →  maskLayerIds = listOf("admin-mask")
//                or LayerMaskSpec(layers = listOf(LayerMaskLayerConfig(id = "admin-mask")))
//   invert    →  LayerMaskSpec.invert
//   mode      →  LayerMaskSpec.mode  (StencilMaskCombineMode.ALL | ANY)

Option	Description	Default
`layerIds`	Type: `List<String>` (`maskLayerIds`)Layer identifiers of the layers to use for masking this layer’s output. Use in combination with `mode` to control how masks are applied. Set as `layer.maskLayerIds` or map each id to `LayerMaskLayerConfig(id = …)` in `layer.layerMask`.	`emptyList()`
`invert`	Type: `Boolean?` ()Whether to invert the mask, meaning the layer will be visible outside of the mask area.	`null`
`mode`	Type: `StencilMaskCombineMode` (JS `'all'` / `'any'`)`ALL` — visible only if all masks apply (intersection). `ANY` — visible if any mask applies (union).	`ALL`

Example usage

The following example demonstrates how to mask a raster tile layer using an administrative boundary layer provided as GeoJSON as the mask:


import com.mapbox.geojson.FeatureCollection
import com.xweather.mapsgl.layers.spec.FillLayerDescriptor
import com.xweather.mapsgl.layers.spec.MaskLayerKind
import com.xweather.mapsgl.sources.GeoJSONSource
import com.xweather.mapsgl.sources.source.spec.GeoJSONSourceDescriptor
import com.xweather.mapsgl.weather.WeatherService

// add the GeoJSON source for the administrative boundary
mapController.addSource(GeoJSONSourceDescriptor(id = "admin-boundaries"))
(mapController.getSource("admin-boundaries") as GeoJSONSource).data =
    FeatureCollection.fromJson(
        """
        {
          "type": "FeatureCollection",
          "features": [
            {
              "type": "Feature",
              "properties": {},
              "geometry": {
                "type": "Polygon",
                "coordinates": [
                  [
                    [-9.034817674180246, 41.88057058365967],
                    [-8.67194576662672, 42.13468943945496],
                    [-8.263856980817792, 42.28046865495034],
                    [-8.013174607769912, 41.790886135417125],
                    [-7.422512986673795, 41.79207469335983],
                    [-7.251308966490824, 41.91834605566505],
                    [-6.668605515967656, 41.883386949219584],
                    [-6.389087693700915, 41.381815497394655],
                    [-6.851126674822552, 41.11108266861753],
                    [-6.864019944679385, 40.33087189387483],
                    [-7.026413133156595, 40.184524237624245],
                    [-7.066591559263529, 39.71189158788277],
                    [-7.498632371439725, 39.62957103124181],
                    [-7.098036668313128, 39.03007274022378],
                    [-7.374092169616318, 38.37305858006492],
                    [-7.029281175148796, 38.07576406508977],
                    [-7.166507941099865, 37.803894354802225],
                    [-7.537105475281024, 37.42890432387623],
                    [-7.453725551778092, 37.09778758396607],
                    [-7.855613165711985, 36.83826854099627],
                    [-8.382816127953689, 36.97888011326246],
                    [-8.898856980820327, 36.86880931248078],
                    [-8.746101446965554, 37.65134552667661],
                    [-8.839997524439879, 38.26624339451761],
                    [-9.287463751655224, 38.3584858261586],
                    [-9.526570603869715, 38.73742910415491],
                    [-9.446988898140232, 39.39206614842837],
                    [-9.048305223008427, 39.75509308527877],
                    [-8.977353481471681, 40.15930613866581],
                    [-8.768684047877102, 40.76063894303019],
                    [-8.79085323733031, 41.18433401139126],
                    [-8.99078935386757, 41.54345937760364],
                    [-9.034817674180246, 41.88057058365967]
                  ]
                ]
              }
            }
          ]
        }
        """.trimIndent(),
    )

// add the administrative boundary layer to use as a mask
mapController.addLayer(
    FillLayerDescriptor(
        id = "admin-mask",
        source = "admin-boundaries",
        stencilOnly = true,
    ),
    beforeID = null,
)

// add the raster data tile source and layer (SatelliteGeocolor)
val satellite = WeatherService.SatelliteGeocolor(mapController.service)
satellite.layer.id = "satellite"
satellite.layer.mask = MaskLayerKind.NONE
satellite.layer.maskLayerIds = listOf("admin-mask")
satellite.layer.paint.opacity = 0.7f
mapController.addWeatherLayer(satellite)

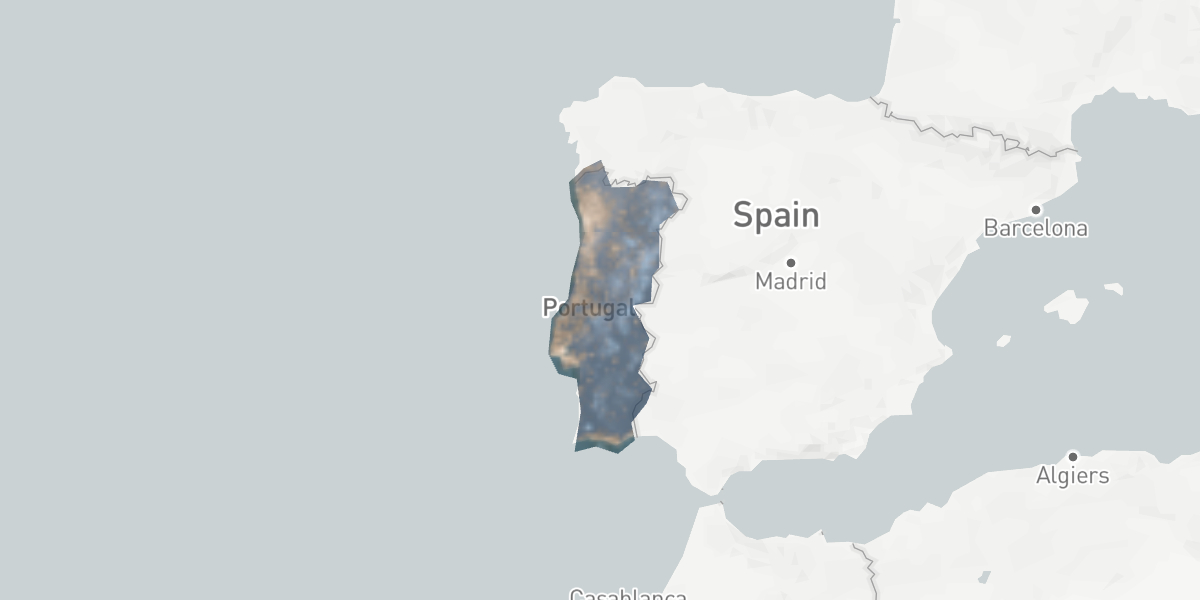

Applying a custom GeoJSON mask to a raster tile layer.

Masking weather layers

Weather layers in MapsGL can also utilize layer masks to control their visibility based on administrative boundaries or other geographic features. This is particularly useful for displaying weather data only within specific regions, such as countries, states, or cities. By applying masks to weather layers, you can create more focused and relevant visualizations that highlight weather conditions in targeted areas.

Basic land and water masks

MapsGL provides built-in land and water mask layers that can be used to mask weather layers based on land and water boundaries. This is useful for displaying weather data only over land or water areas.

On Android, built-in land and water masks require stencil OSM tiles. Configure once per map session before the examples below:


import com.xweather.mapsgl.map.mapbox.GlStencilOsm

GlStencilOsm.source = GlStencilOsm.Source.MAPSGL
GlStencilOsm.mapboxAccessToken = yourMapboxAccessToken

For example, the following masks temperatures to show only over land areas:


import com.xweather.mapsgl.layers.spec.LayerMasks
import com.xweather.mapsgl.weather.WeatherService

val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.layerMask = LayerMasks.land()
mapController.addWeatherLayer(temperature)

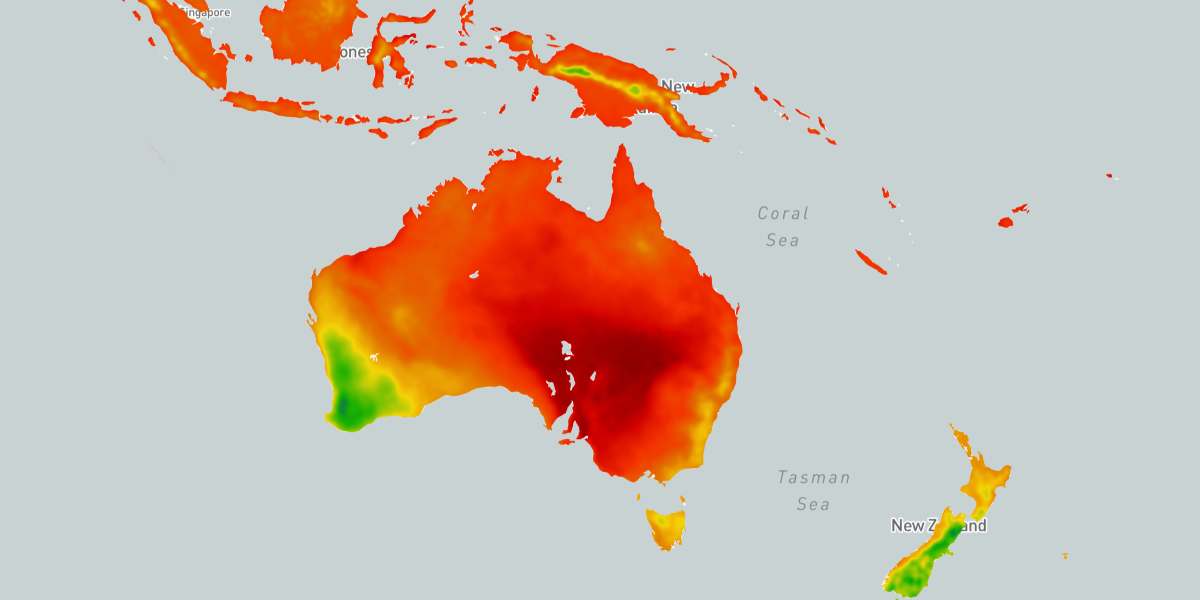

Masking temperatures to show only over land areas.

Conversely, you can mask temperatures to show only over water areas:


val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.layerMask = LayerMasks.water()
mapController.addWeatherLayer(temperature)

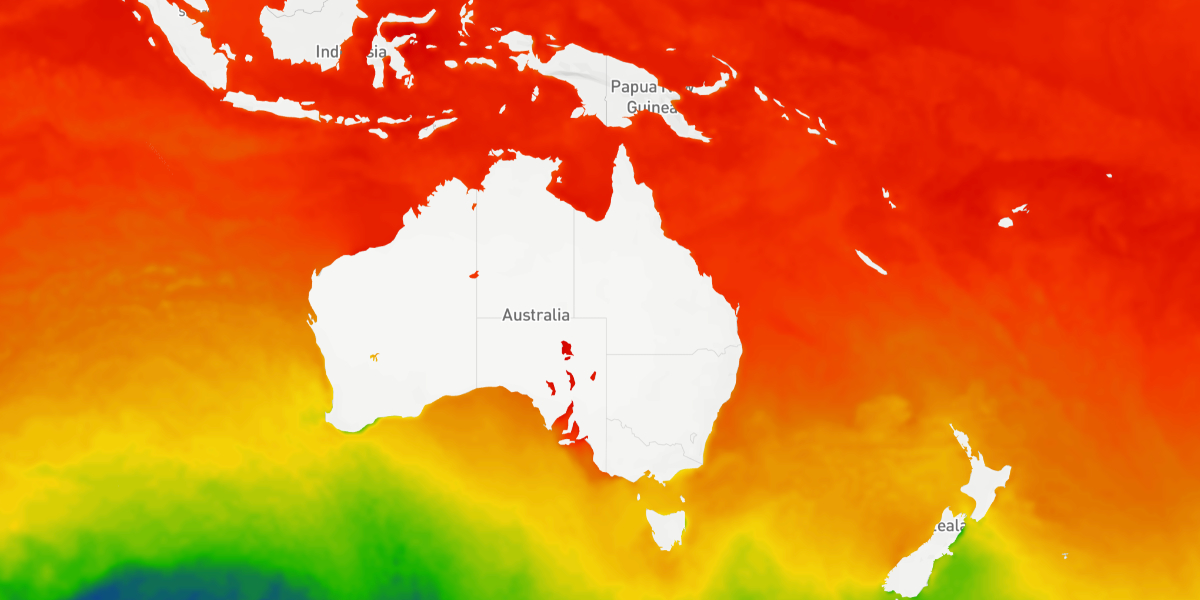

Masking temperatures to show only over water areas.

Custom mask layers

For example, you can mask a temperature layer to show temperatures only within the boundaries of a specific country or state, enhancing the clarity and usefulness of the weather data presented on the map:


import com.xweather.mapsgl.weather.WeatherService

// This example assumes the admin-boundaries source and stencil-only admin-mask fill layer
// from the first example above are already on the map.

val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.maskLayerIds = listOf("admin-mask")
mapController.addWeatherLayer(temperature)

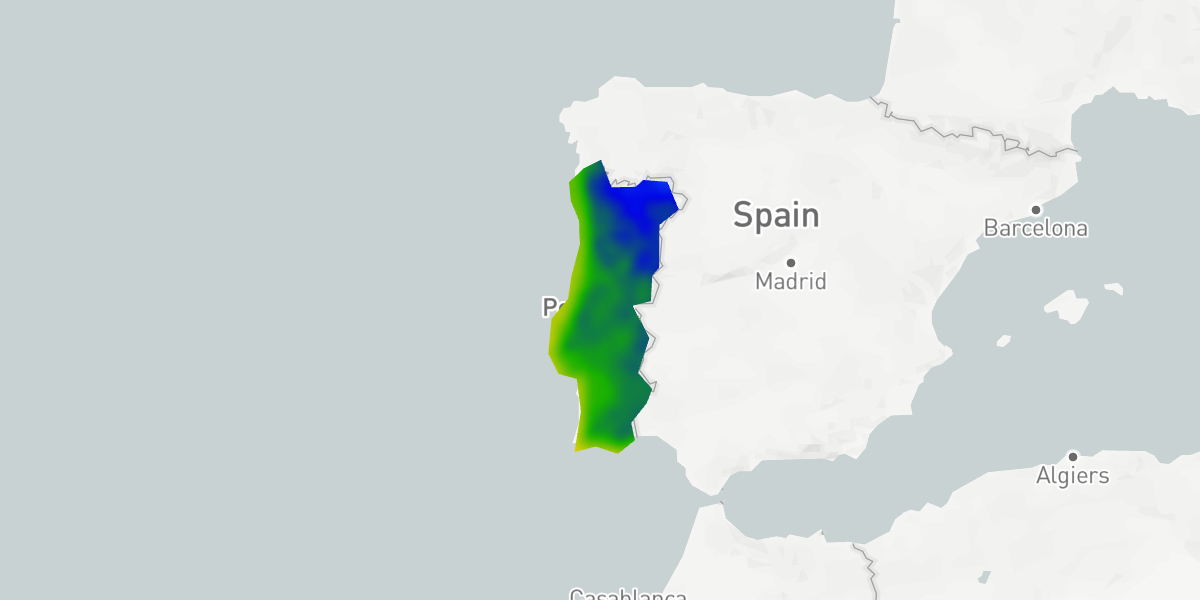

Masking temperatures to a custom GeoJSON region.

You can also invert the mask to display weather data outside of the specified region:


import com.xweather.mapsgl.layers.spec.LayerMaskLayerConfig
import com.xweather.mapsgl.layers.spec.LayerMaskSpec
import com.xweather.mapsgl.weather.WeatherService

val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.layerMask = LayerMaskSpec(
    layers = listOf(LayerMaskLayerConfig(id = "admin-mask")),
    invert = true,
)
mapController.addWeatherLayer(temperature)

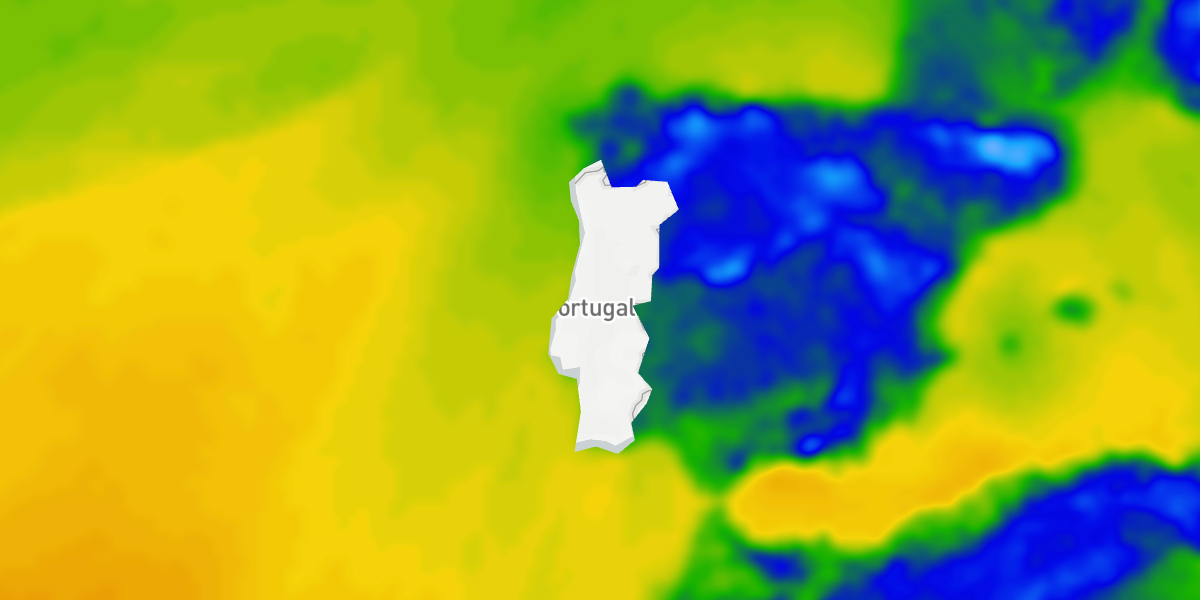

Masking temperatures by inverting the mask.

If you have a layer instance returned by your map controller when calling addLayer, you can also use that layer instance’s id to specify the mask:


import com.xweather.mapsgl.layers.spec.FillLayerDescriptor
import com.xweather.mapsgl.layers.spec.LayerMaskLayerConfig
import com.xweather.mapsgl.layers.spec.LayerMaskSpec
import com.xweather.mapsgl.weather.WeatherService

// This example assumes the admin-boundaries source and stencil-only admin-mask fill layer
// from the first example above are already on the map.

// add the administrative boundary layer to use as a mask
val adminLayer = mapController.addLayer(
    FillLayerDescriptor(
        id = "admin-mask",
        source = "admin-boundaries",
        stencilOnly = true,
    ),
    beforeID = null,
)

val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.layerMask = LayerMaskSpec(
    layers = listOf(LayerMaskLayerConfig(id = adminLayer!!.id)),
    invert = true,
)
mapController.addWeatherLayer(temperature)

Multiple masks using modes

You can also use multiple layers as masks for another layer by specifying multiple layer IDs in the layerIds array. By default, the mode is set to 'all', meaning the target layer will be visible only if all the masks are visible (intersection of all masks). You can change the mode to 'any' to make the target layer visible if any of the masks are visible (union of all masks).

For instance, you may want to mask temperatures to just major highways in the US. For this, you’d need a polygon layer for the US boundary and a stencil-only line layer for motorways (not a visible road-motorway weather layer). You can then use both layers as masks for the temperature layer.

Runnable demo (BlankMapActivity buttons 7 / 8): the sample app loads bundled CONUS GeoJSON from assets (natural_earth/conus.geojson) instead of the Natural Earth vector tile URL below, and adds motorways as a stencil-only LineLayerDescriptor so StencilMaskCombineMode.ALL can intersect fill × line correctly. Production apps can use your own GeoJSON or vector tile source instead.

Motorway mask layer: use LineLayerDescriptor(…, stencilOnly = true) driven by WeatherService.RoadMotorway source/filter. Adding RoadMotorway with addWeatherLayer() does not build the MVT line stencil meshes required for multi-mask intersection.

Layer id countries: when a fill layer with this id is already on the map, it is treated as a normal mask layer reference—not the JS built-in land shorthand (countries without a layer → land mask).


import com.mapbox.geojson.FeatureCollection
import com.xweather.mapsgl.layers.spec.FillLayerDescriptor
import com.xweather.mapsgl.layers.spec.LayerMaskLayerConfig
import com.xweather.mapsgl.layers.spec.LayerMaskSpec
import com.xweather.mapsgl.layers.spec.LineLayerDescriptor
import com.xweather.mapsgl.layers.spec.MaskLayerKind
import com.xweather.mapsgl.layers.spec.StencilMaskCombineMode
import com.xweather.mapsgl.map.mapbox.MapboxMapController
import com.xweather.mapsgl.sources.GeoJSONSource
import com.xweather.mapsgl.sources.source.spec.GeoJSONSourceDescriptor
import com.xweather.mapsgl.style.LineLayerPaint
import com.xweather.mapsgl.style.StrokePaint
import com.xweather.mapsgl.style.StyleValue
import com.xweather.mapsgl.weather.WeatherService

// US boundary polygon (demo: bundled CONUS GeoJSON; production: your GeoJSON or vector tiles)
mapController.addSource(GeoJSONSourceDescriptor(id = "naturalearth"))
(mapController.getSource("naturalearth") as GeoJSONSource).data =
    FeatureCollection.fromJson(conusGeoJsonFromAssetsOrServer)

val countriesLayer = mapController.addLayer(
    FillLayerDescriptor(
        id = "countries",
        source = "naturalearth",
        stencilOnly = true,
    ),
    beforeID = null,
)

// Stencil-only motorway ribbon (stroke thickness in points; used by the GLES mask builder)
val roadCfg = WeatherService.RoadMotorway(mapController.service)
if (!mapController.hasSource(roadCfg.source.id)) {
    mapController.addSource(roadCfg.source)
}
val motorwayPaint = (roadCfg.layer.paint as? LineLayerPaint)?.copy()
    ?: LineLayerPaint(stroke = StrokePaint())
motorwayPaint.stroke.thickness = StyleValue.Constant(3.0)
mapController.addLayer(
    LineLayerDescriptor(
        id = "road-motorway",
        source = roadCfg.source.id,
        sourceLayer = roadCfg.layer.sourceLayer,
        paint = motorwayPaint,
        filter = roadCfg.layer.filter,
        stencilOnly = true,
    ),
    beforeID = null,
)

// Temperature visible only where the US polygon AND motorways overlap (intersection)
val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.mask = MaskLayerKind.NONE
temperature.layer.layerMask = LayerMaskSpec(
    layers = listOf(
        LayerMaskLayerConfig(id = countriesLayer!!.id),
        LayerMaskLayerConfig(id = "road-motorway"),
    ),
    mode = StencilMaskCombineMode.ALL,
)
mapController.addWeatherLayer(temperature)
(mapController as? MapboxMapController)?.reregisterCustomStencilMask(temperature.layer.id)

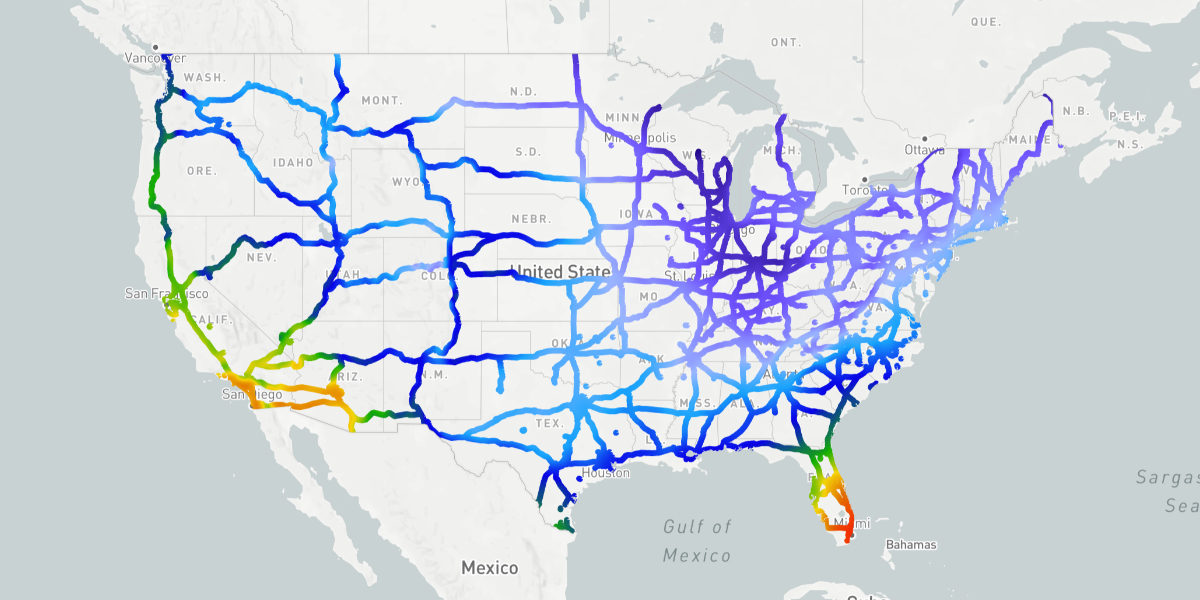

Masking temperatures to show only along major highways in the US using multiple mask layers.

Using the any mode will show temperatures anywhere either of the mask layers are visible, so you’d see temperatures over the entire US as well as along the highways globally outside of the US:


val temperature = WeatherService.Temperatures(mapController.service)
temperature.layer.mask = MaskLayerKind.NONE
temperature.layer.layerMask = LayerMaskSpec(
    layers = listOf(
        LayerMaskLayerConfig(id = countriesLayer!!.id),
        LayerMaskLayerConfig(id = "road-motorway"),
    ),
    mode = StencilMaskCombineMode.ANY,
)
mapController.addWeatherLayer(temperature)
(mapController as? MapboxMapController)?.reregisterCustomStencilMask(temperature.layer.id)

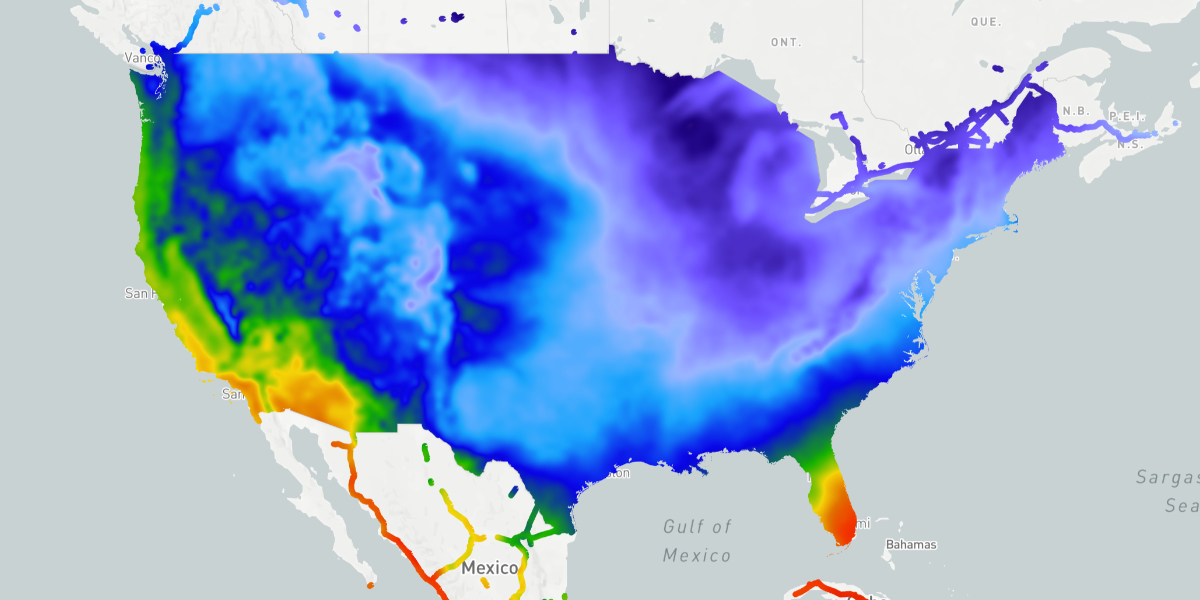

Masking temperatures to show anywhere in the US and any major highways globally using multiple mask layers.
